SKU: PRO+4G

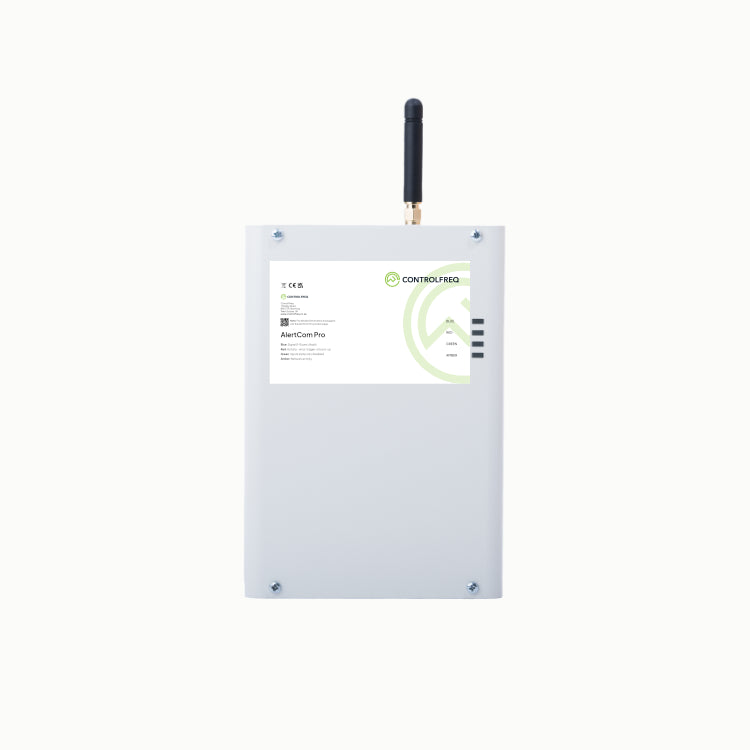

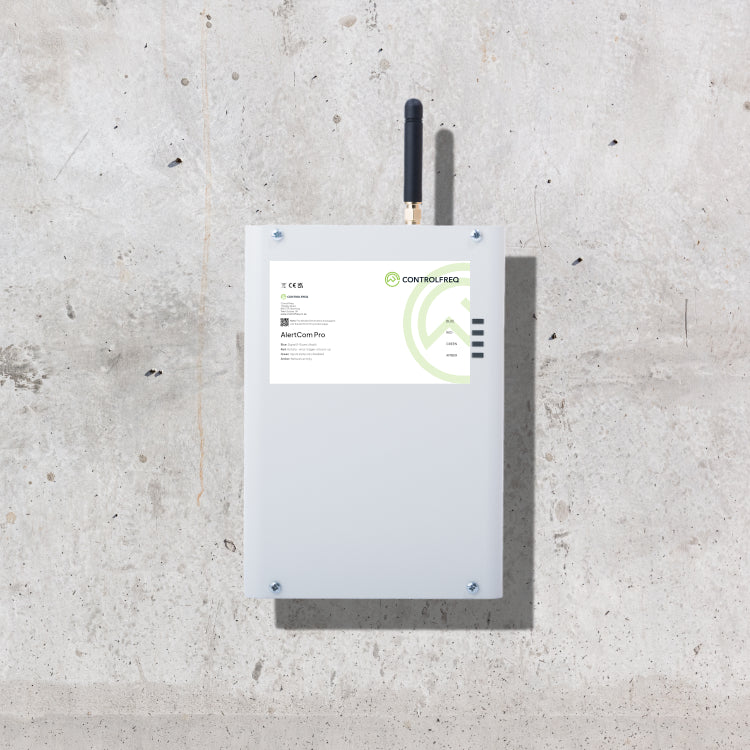

Universal Alarm Signal Communicator (4G-VoLTE)

£368.00 ex VAT In stock

4G-VoLTE alarm communicator that sends alarms from any panel or sensor by SMS, voice call, email via WebAlarm, or DC09/Contact-ID to an ARC. A retrofit replacement for PSTN and legacy signalling.

Works with any alarm panel, fault detection system or sensor
4 configurable alarm inputs and 4 configurable outputs
Alarms by SMS, voice call, email (WebAlarm) and DC09/Contact-ID to ARCs
4G-LTE on all four UK networks with an optional Evolve multi-network SIM
Set up by web, app or SMS, with over-the-air firmware updates

Connectivity (SIM) Own SIM · Included

Use your own SIM Micro SIM. Voice, SMS and data for full functionality Included EvolveSIM Roams across all four UK networks. £120 + VAT/yr by direct debit (activates once DD confirmed) £120 + VAT / year

WebAlarm Monitoring WebAlarm · £5/mth per unit

WebAlarm cloud monitoring then from ~~£7.50/mth per unit~~ after 30 days Offer£5/mth per unit for the first year, then £7.50/mth. Setup included. 30 days' notice to cancel. £5/mth Self-managed SMS, voice call and ARC signalling direct from the unit Included OEM Branded UI Your own branded monitoring service, with our support. One-off integration fee plus annual licence POA

Services are billed separately by direct debit. We'll send you a GoCardless direct debit mandate after your order.

Optional add-ons 0 added

Subtotal £368.00 ex VAT

£441.60 inc VAT (20%)

Trade/business sales only. Consumers can buy through a ControlFreq Trade partner.

Get trade discount Outside the UK? Request a shipping quote

Talk to an engineer · 020 3478 0784

Specifications

Technical details

Product code	PRO+4G
Network	4G-VoLTE with 3G/2G fallback
Grade	Grade 2
Module	Global 4G VoLTE module
SIM	Micro SIM. Voice, SMS and data SIMs give full functionality; data-only SIMs do not support voice calls
Power input (no battery)	12–24V DC
Power input (with battery)	13.8–15V DC
Power consumption	250mA transmitting / 40mA idle
Backup battery	12V 1.2Ah (optional)
Auxiliary output	12V DC, 300mA max
Inputs	4 alarm inputs (configurable), plus input disable and tamper
Outputs	4 digital outputs (configurable)
Phone line output	PSTN simulator
Event transmission	SMS, voice call, email (WebAlarm), DC09/Contact-ID (ARC)
Configuration	Web, app and SMS
Firmware updates	Over-the-air (F-OTA)
Antenna	SMA male connector
Status indicators	4 LEDs: blue signal, red fault/alarm/error, green input status, amber network status
Enclosure	Compact metal, surface mounted (not IP rated)
Optional enclosure	IP56

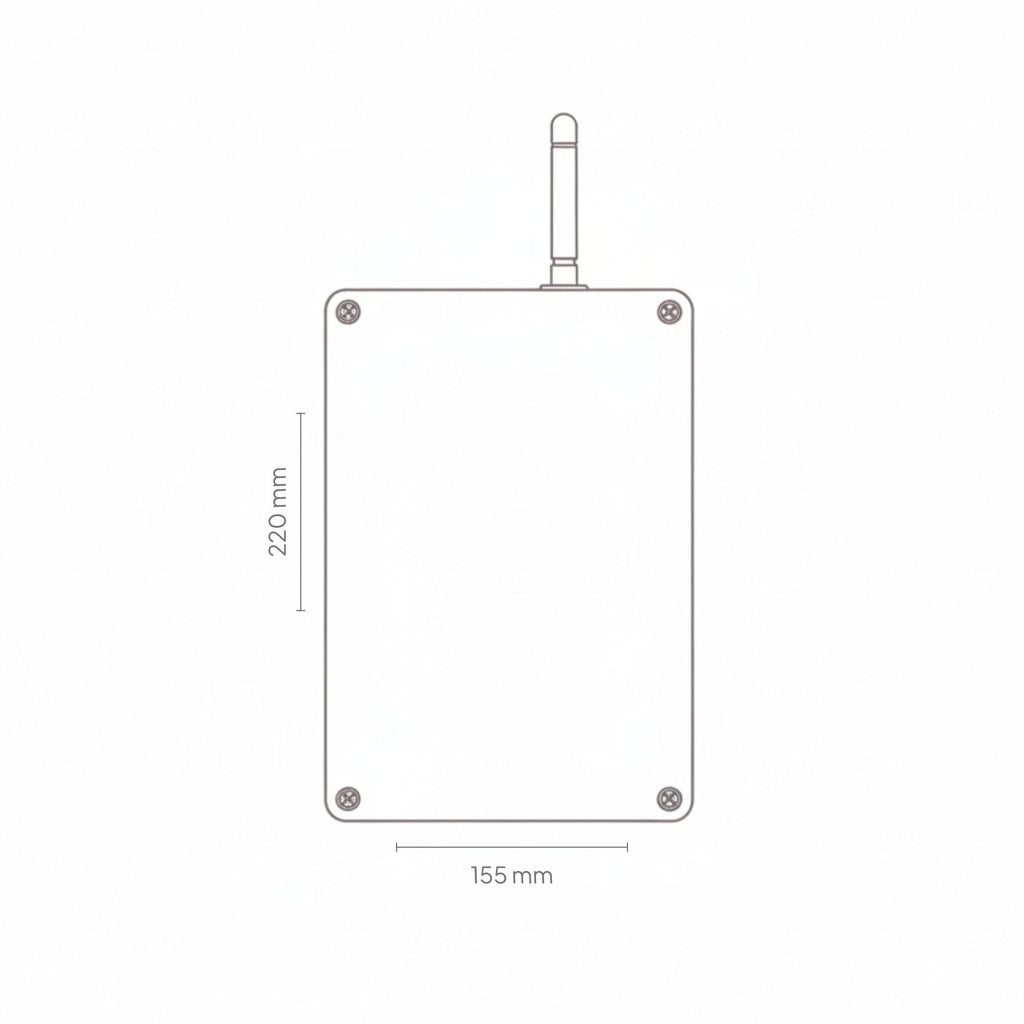

Dimensions	155 × 220 × 58 mm
Operating temperature	-10°C to +50°C
Weight	60g (PCB) / 180g
Cloud monitoring	WebAlarm (optional)
Connectivity	Evolve multi-network IoT SIM (optional)
Warranty	3 years

How it works · with WebAlarm cloud

From panel to phone, in one path.

WebAlarm is optional. It logs fire, panic, intruder, leak and equipment-failure alarms in real time, alerts on mains power, battery and signal loss, and posts to your Slack channels by default. It also takes Contact-ID and SIA-DC09 signals from devices made by others.

Explore WebAlarm

Alarm panel

Any panel or sensor triggers one of 4 inputs
PRO+4G

Picks up the signal and sends it over 4G
4G-VoLTE network

Secure mobile connectivity, with optional EvolveSIM
WebAlarm cloud

Logs fire, panic, intruder, leak and fault alarms, plus power, battery and signal, in real time
You / your ARC

Slack, SMS, voice call, email, or DC09/Contact-ID to your ARC

WebAlarm cloud

See every site from one screen.

Alarms, power and signal for every unit, on a map, in a table and in reports.

FAQ

Questions, answered.

Can't find what you need? Call 020 3478 0784 or email hello@controlfreq.co.uk

Which alarm panels does it work with?

It works with any alarm panel, fault detection system or sensor. It has 4 configurable alarm inputs, 4 configurable outputs and a PSTN simulator (phone line out), and it can signal to ARCs using DC09 or Contact-ID.

What SIM card do I need?

It takes a micro SIM. For full functionality use a SIM that supports voice, SMS and data. Data-only SIMs work, but voice call alerts are not supported. For coverage across all four UK networks, use the optional Evolve multi-network SIM.

How are alarms sent?

By SMS, voice call, email through WebAlarm, push notifications through the apps, and DC09/Contact-ID to an Alarm Receiving Centre.

Do I need WebAlarm?

No, WebAlarm is optional. Without it the communicator can still send SMS and voice alerts to user handsets and signal to an ARC. WebAlarm adds live alarm logging, mains and battery status, signal loss alerts, remote configuration and multi-site management.

How do I configure it and keep it up to date?

Configure it by web, app or SMS. SMS commands are also useful for quick status checks. Firmware updates are delivered over the air (F-OTA).

What power does it need?

Without a backup battery it runs from a 12–24V DC supply. With the optional 12V 1.2Ah backup battery connected, it needs 13.8–15V DC. It draws 250mA when transmitting and 40mA when idle.

What warranty does it come with?

The PRO+4G comes with a 3-year warranty.

Integration & OEM

A control layer built around your operation.

We add management, visibility and control on top of the alarm, communication and access control systems you already run. From white-label portals to full OEM builds, we work end to end.
